SMA Solar Technology

SMA Inverters

SMA Solar Technology are possibly the grand-daddy of solar energy focussed European companies. Their Sunny Boy inverters are ubiquitous and competitively priced, giving them an edge when it comes to small-scale rooftop solar PV systems for domestic customers.

SMA Solar Technology also produce a range of competitive commercial solar PV solutions for any type of commercial project, and have a very desirable range of AC coupled battery management solutions which are suitable for the offgrid minded customer.

Their Sunny Portal software offering should meet the needs of most customers, while their warranties – extendable up to 20 years – emphasise the faith that SMA have in their own products.

Based on the warranty offered, SMA are built-to-last, which is music in the ears of every engineer.

Contact Solar Now for your FREE CONSULTATION

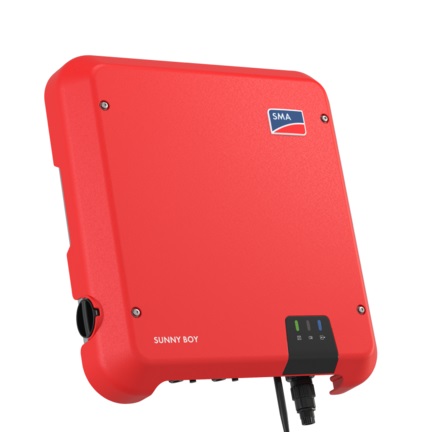

Sunny Boy 3 / 4 / 5 or 6 kW

SMA’s single-phase residential inverter offering is the SunnyBoy inverter, available in power outputs of 3, 3.6, 4, 5 or 6 kW.

This single-phase range of inverters can carry up to 9 kWp of solar PV.

For Irish domestic customers, who are now capped at 5 kW power output, the Sunny Boy can facilitate up to 7.5 kWp of solar PV panels.

SMA offer a host of software and service related supports for all of their inverters including automatic monitoring and a 3-day replacement service.

SMA’s overall customer offering speaks to their belief in quality products and in supporting those quality products throughout the product lifetime.

Sunny Tripower Inverter 5 / 6 / 8 or 10 kW

SMA’s three-phase range of home and small commercial inverters are available up to 10 kW power rating, carrying up to 15 kWp of solar PV modules.

This range of inverters is intended to operate in a flexible way incorporating battery backup power, heat-pump connectivity and EV charging as needed.

In an Irish context the Sunny Tripower inverters will be most suitable for small commercial businesses with three-phase power requirements.

SMA Storage Solutions

SMA have a wide offering in the storage solution space, from energy storage designed for the small home market, to fully islanded systems, to grid-scale battery storage solutions.

These offerings are variously called Sunny Boy Storage, Sunny Island or Sunny Central.

The SMA Sunny Boy Storage Inverter is possibly the most versatile AC coupled battery management system available for potential offgrid applications.

This system offers up to a nominal 3.7 kW of power output in situations where the grid is unavailable, or where the customer has elected for an offgrid scenario.

SMA have designed the system with a wide compatibility, and the ability to manage three different batteries concurrently for maximum flexibility and adaptibility.

You should ALWAYS GET A QUALIFIED ENGINEER to specify your solar system to ensure your solar array, inverter and battery are CORRECTLY SIZED for your individual needs.
Ibid.

SMA Project Inverters Core1, Core2

SMA’s project inverter offering starts with the Tripower range extending up to the Core1 and Core2 inverter for solar deployments up to Megawatt scale.

The Sunny Tripower Core1 and Core2 come with integrated Arc-fault Circuit Interrupter (AFCI) and IV diagnostics, with optional AC surge-protector and DC surge-protector devices.

Each Core1 is rated up to 75 kWp DC input with stated efficiency of 98.1% / 97.8%.

Each Core2 is rated up to 165 kWp DC input with stated efficiency of 98.6% / 98.4%.

The Warranty can be extended for up to 20 years.

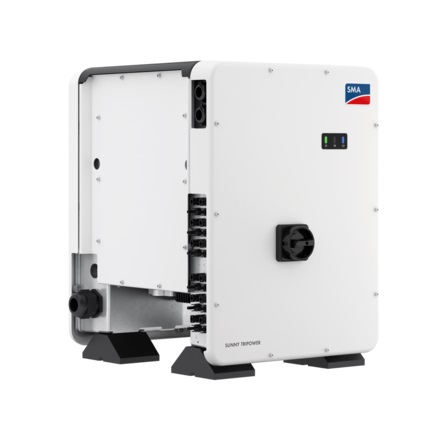

SMA Sunny Tripower Core1 Inverter — SMA Sunny Tripower Core1 free-standing Inverter

Where possible, Solar Now will choose SMA inverters and other high quality components for our customers.
